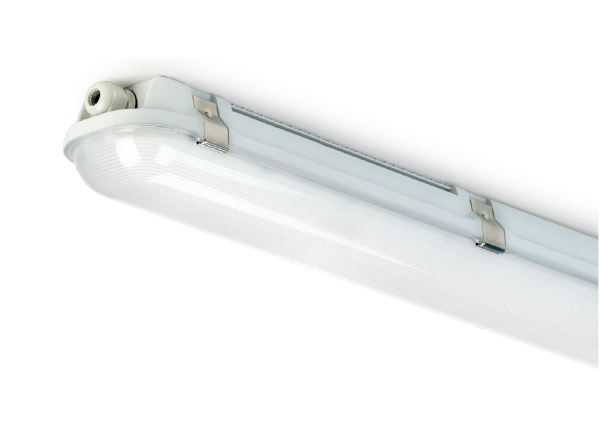

LinearPac+™
Specification:
Colour & Wattage Selectable Anti-Corrosives

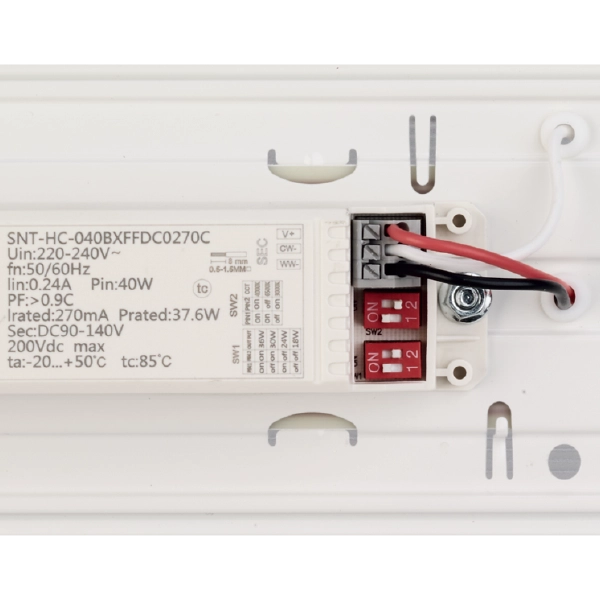

Colour temperature can be switched between 3000K, 4000K and 6500K
Wattage selectable
Clip in gear tray for ease of installation and maintenance
Delivering up to 160lm/W
Stainless steel anti-tamper clips
2x IP66 rated cable glands supplied
IK10 rated impact resistance
Adjustable light detector from 2-50 lux for microwave option
Adjustable hold time of 5 seconds to 15 minutes for microwave option
-10°C to 50°C ambient operating temperature (for standard and MS version, 0-40°C for EM option)
| Cat. No. | Watts | lm/W | Lumens | Colour | Beam | Spec Sheets | IES Files |
|---|---|---|---|---|---|---|---|
| Twin 4' (1200mm) | |||||||
AA-ANT12WSF-CCT3* | 20W / 24W / 30W / 36W | up to 160 | 5760lm | 3000K / 4000K / 6500K | 110° |  | |
| Twin 5' (1500mm) | |||||||
AA-ANT15WSF-CCT3* | 32W / 38W / 48W / 58W | up to 160 | 9280lm | 3000K / 4000K / 6500K | 110° | | |
*Add suffix EM for Emergency, MS for Microwave Sensor options available upon request
| Cat. No. | Description |
|---|---|

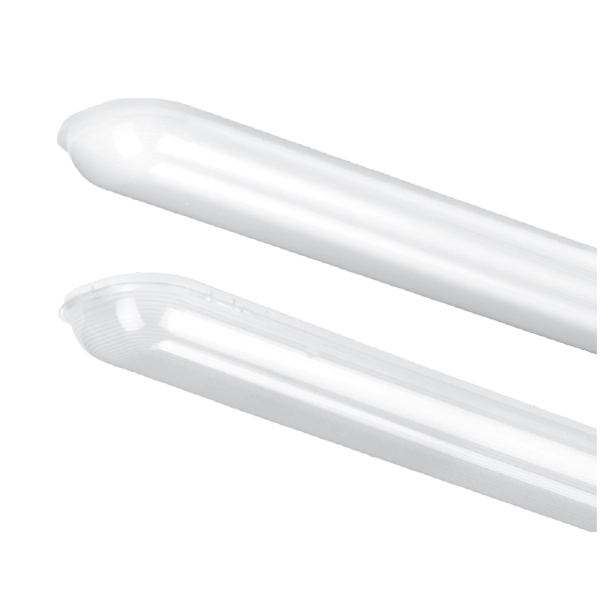

AA-ANTA12-M | 4' milky diffuser |
AA-ANTA12-F | 4' frosted diffuser |
AA-ANTA15-M | 5' milky diffuser |
AA-ANTA15-F | 5' frosted diffuser |
| Cat. No. | Watts | lm/W | Lumens | Colour | Beam | Spec Sheets | IES Files |
|---|---|---|---|---|---|---|---|
| Twin 4' (1200mm) | |||||||
AA-ANT12WSF-CCT3* | 20W / 24W / 30W / 36W | up to 160 | 5760lm | 3000K / 4000K / 6500K | 110° | | |
| Twin 5' (1500mm) | |||||||
AA-ANT15WSF-CCT3* | 32W / 38W / 48W / 58W | up to 160 | 9280lm | 3000K / 4000K / 6500K | 110° | | |
*Add suffix EM for Emergency, MS for Microwave Sensor options available upon request
| Cat. No. | Description |
|---|---|
AA-ANTA12-M | 4' milky diffuser |
AA-ANTA12-F | 4' frosted diffuser |
AA-ANTA15-M | 5' milky diffuser |
AA-ANTA15-F | 5' frosted diffuser |
