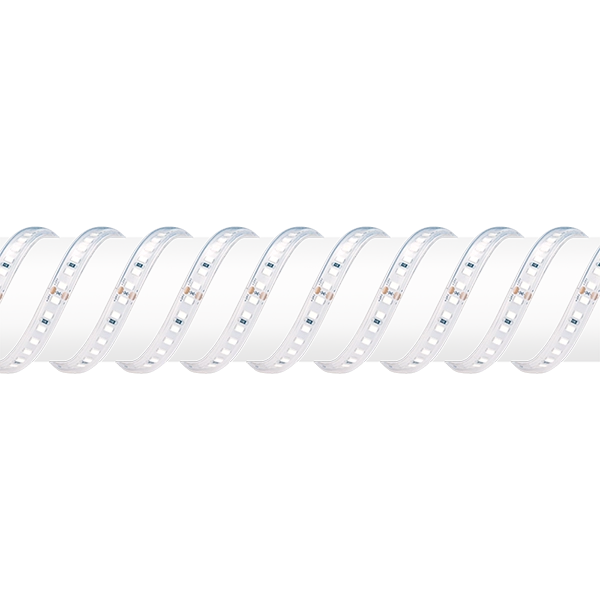

LEDline™ 24V IP67 High Efficiency
Specification:
24V IP67 High Efficiency Single Colour LED Strip
Single colour flexible strip with 3M™ self adhesive backing
High efficiency up to 137lm/W
Cut points every 50mm for maximum flexibility
Beam angle of 120°
160 LEDs per metre
For runs over 5m individual lengths should be connected in parallel
Reel length of 30m
| Cat. No. | Watts/m | No. of LEDs/m | Colour | lm/m | lm/W | Spec Sheets |
|---|---|---|---|---|---|---|
AA-ST12110IP-30 | 11W | 160 | 3000K | 1320lm | 120 |  |
AA-ST12110IP-40 | 11W | 160 | 4000K | 1430lm | 130 | |
AA-ST12110IP-50 | 11W | 160 | 5000K | 1469lm | 135 | |
AA-ST12110IP-65 | 11W | 160 | 6500K | 1508lm | 137 | |
| Accessories | |||||||
|---|---|---|---|---|---|---|---|
AA-STA12IP | LEDline™ IP67 strip connector kit |
||||||
| Cat. No. | Description | Metres per driver |
|---|---|---|
| LED Drivers | ||
SV-LPV-35-24 | 35W non-dimmable IP67 24V constant voltage driver | 3m |
SV-LPV-60-24 | 60W non-dimmable IP67 24V constant voltage driver | 5m |
SV-LPV-100-24 | 100W non-dimmable IP67 24V constant voltage driver | 8m |
SV-LPV-150-24 | 150W non-dimmable IP67 24V constant voltage driver | 12m |
| Max single run 5m | ||
| Cat. No. | Watts/m | No. of LEDs/m | Colour | lm/m | lm/W | Spec Sheets |
|---|---|---|---|---|---|---|
AA-ST12110IP-30 | 11W | 160 | 3000K | 1320lm | 120 | |
AA-ST12110IP-40 | 11W | 160 | 4000K | 1430lm | 130 | |
AA-ST12110IP-50 | 11W | 160 | 5000K | 1469lm | 135 | |
AA-ST12110IP-65 | 11W | 160 | 6500K | 1508lm | 137 | |
| Accessories | |||||||
|---|---|---|---|---|---|---|---|
AA-STA12IP | LEDline™ IP67 strip connector kit |
||||||
| Cat. No. | Description | Metres per driver |
|---|---|---|
| LED Drivers | ||
SV-LPV-35-24 | 35W non-dimmable IP67 24V constant voltage driver | 3m |
SV-LPV-60-24 | 60W non-dimmable IP67 24V constant voltage driver | 5m |
SV-LPV-100-24 | 100W non-dimmable IP67 24V constant voltage driver | 8m |
SV-LPV-150-24 | 150W non-dimmable IP67 24V constant voltage driver | 12m |
| Max single run 5m | ||
