LEDline™ 24V Eco
Specification:

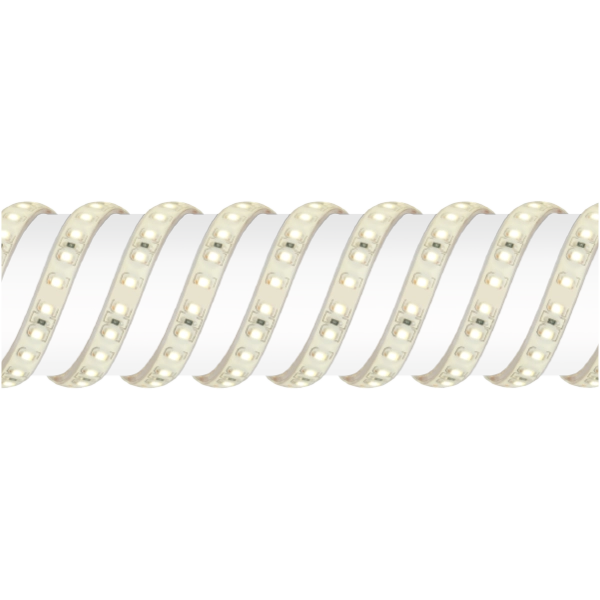

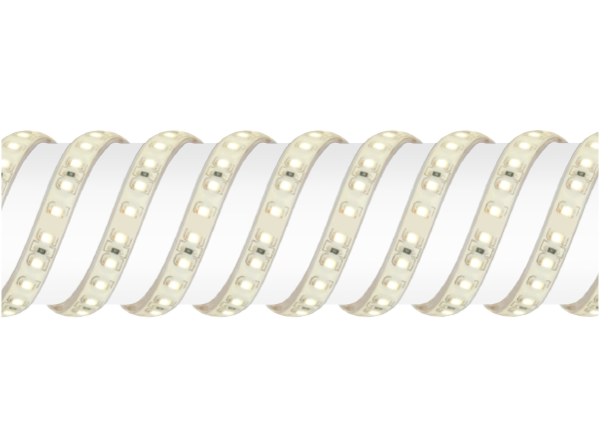

24V IP67 ECO Single Colour LED Strip
Single colour flexible led strip with 3M™ self adhesive backing
High efficiency up to 109lm/W
Cut points every 50mm for maximum flexibility
Beam angle of 120°
120 LEDs per metre
For runs over 5m individual lengths should be connected in parallel
Reel length of 30m
| Cat. No. | Watts/m | No. of LEDs/m | Colour | lm/m | lm/W | Spec Sheets |
|---|---|---|---|---|---|---|
EN-ST324B-30 | 9.6W | 120 | 3000K | 950lm | 99 |  |
EN-ST324B-40 | 9.6W | 120 | 4000K | 1000lm | 104 | |
EN-ST324B-BLU | 9.6W | 120 | Blue | - | - | |
| Accessories | |||||||
|---|---|---|---|---|---|---|---|
EN-STIPCKB | LEDline™ IP67 strip connector kit | ||||||
| Cat. No. | Description | Metres per driver |
|---|---|---|
| LED Drivers | ||
SV-LPV-35-24 | 35W non-dimmable IP67 24V constant voltage driver | 3m |
SV-LPV-60-24 | 60W non-dimmable IP67 24V constant voltage driver | 5.5m |
SV-LPV-100-24 | 100W non-dimmable IP67 24V constant voltage driver | 10m |
| Max single run 5m | ||
