LEDline™ 24V IP20 RGB
Specification:

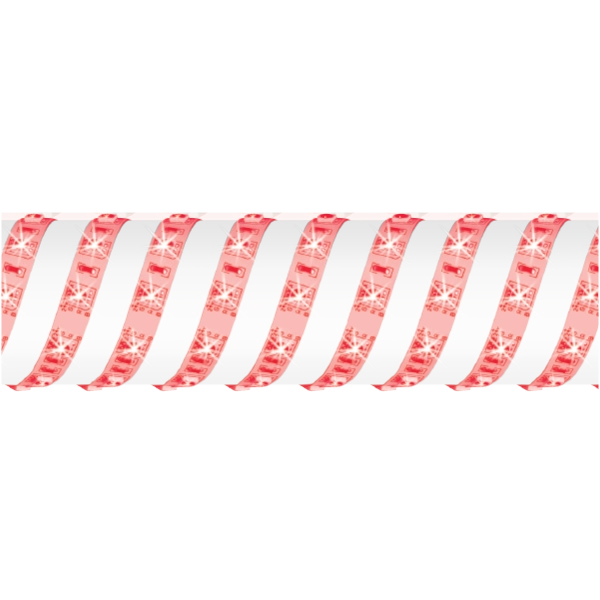

24V IP20 RGB LED Strip
High density colour changing flexible LED strip with 3M™ self adhesive backing
Cut points every 100mm for maximum flexibility
Beam angle of 120°
60 LEDs per metre
Programmable settings including static colours and colour changing modes
For runs over 5m individual lengths should be connected in parallel
Reel length of 30m

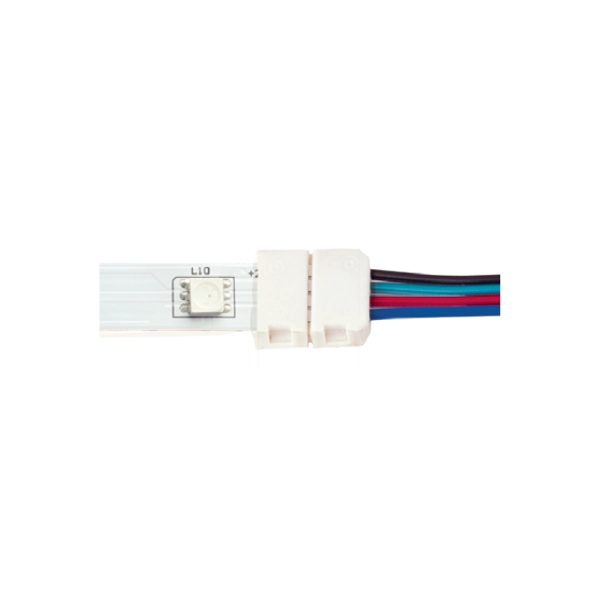

LEDline™ RGB strip connector

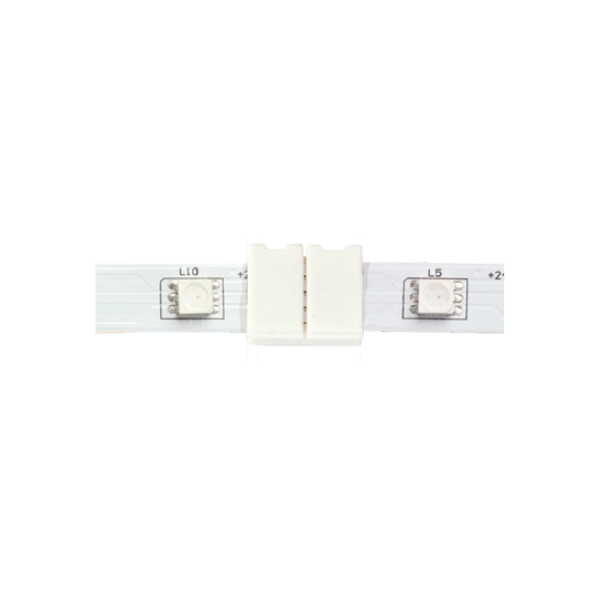

LEDline™ RGB strip connector

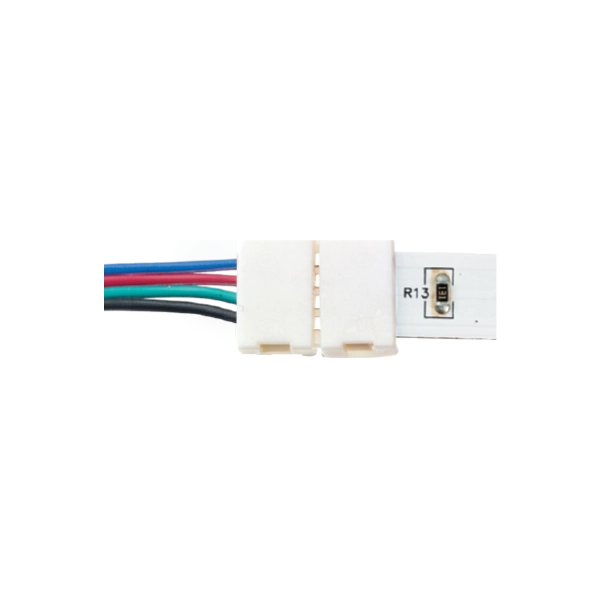

LEDline™ RGB inter-connection strip connector
| Cat. No. | Watts/m | No. of LEDs/m | Colour | Spec Sheets |
|---|---|---|---|---|
EN-ST224RGB | 14.4W | 60 | RGB |  |
| Accessories | |||||||
|---|---|---|---|---|---|---|---|
EN-STRGBA | LEDline™ RGB strip connector |
||||||
EN-STRGBB | LEDline™ RGB wired strip coupler/joiner |
||||||
EN-STRGBC | LEDline™ RGB inter-connection coupler/joiner |
||||||
| Cat. No. | Description | Metres per driver |
|---|---|---|
| LED Drivers | ||
SV-LRS-35-24 | 35W non-dimmable 24V constant voltage driver | 2m |
SV-LRS-50-24 | 50W non-dimmable 24V constant voltage driver | 3m |
SV-LRS-75-24 | 75W non-dimmable 24V constant voltage driver | 5m |
SV-LRS-100-24 | 100W non-dimmable 24V constant voltage driver | 6.5m |
SV-LRS-150-24 | 150W non-dimmable 24V constant voltage driver | 10m |
| Max single run 5m | ||
