Specification:

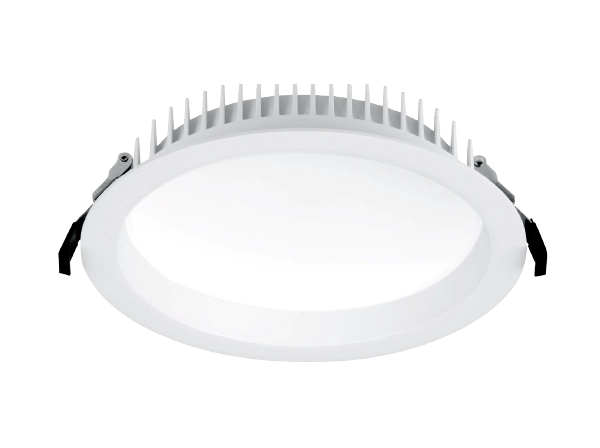

Wattage Selectable High Efficiency Recessed LED Downlights

Designed for a variety of applications, ideal for retrofit solutions with a wide range of cutouts available
Wattage selectable
Delivering up to 140lm/W
Up to 100° beam angle
Lifetime not affected by frequent switching e.g. when using occupancy controls
Plug and play remote driver for easy installation
Low profile fixture, ideal for installations with limited ceiling void depths
Opal diffuser to reduce glare and for even light distribution
1.5kV surge protection

Cat. No.Wattslm/WLumensColourBeamSpec SheetsIES Files
4"
AA-DLHWS4-30
6W / 8W / 10W / 12W / 14Wup to 125760lm - 1800lm3000K90°DownloadDownload
AA-DLHWS4-40
6W / 8W / 10W / 12W / 14Wup to 130800lm - 1900lm4000K90°DownloadDownload
6"
AA-DLHWS6-30
9W / 11W / 14W / 17W / 22Wup to 1301150lm - 2950lm3000K90°DownloadDownload
AA-DLHWS6-40
9W / 11W / 14W / 17W / 22Wup to 1401200lm - 3100lm4000K90°DownloadDownload
8"
AA-DLHWS8-30
14W / 18W / 22W / 26W / 30Wup to 1302000lm - 4200lm3000K90°DownloadDownload
AA-DLHWS8-40
14W / 18W / 22W / 26W / 30Wup to 1402100lm - 4400lm4000K90°DownloadDownload
10"
AA-DLHWS10-30
26W / 30W / 33W / 36W / 38Wup to 1303600lm - 5200lm3000K100°DownloadDownload
AA-DLHWS10-40
26W / 30W / 33W / 36W / 38Wup to 1403700lm - 5400lm4000K100°DownloadDownload

Triac, Dali, 1-10V dimmable & EM options available, contact sales office for more information

Accessories
AA-DLA4

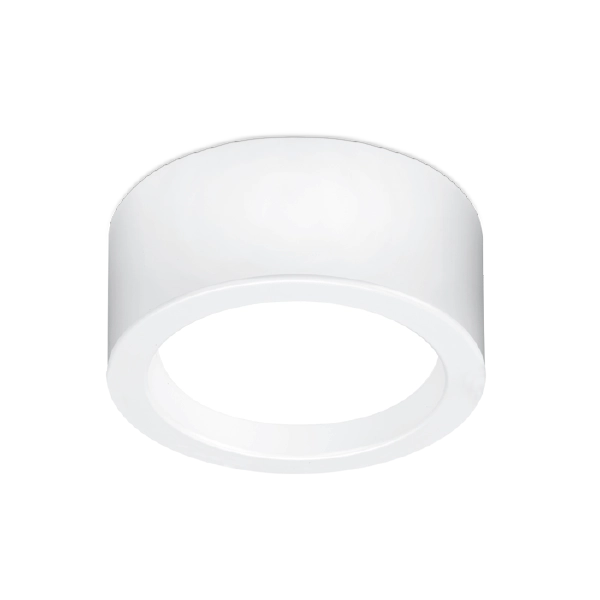

4" Surface mount accessory
AA-DLA6
6" Surface mount accessory
AA-DLA8
8" Surface mount accessory
