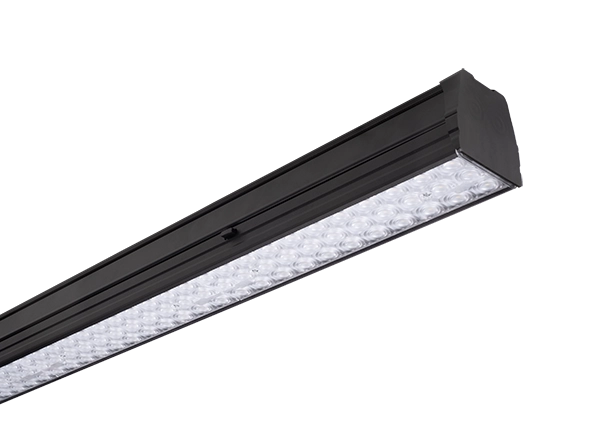

Linium+™
Specification:
Retail LED Linear Wattage Selectable
Modular system incorporating a trunking rail (housing wiring harnesses) and separate clip in luminaire
Wattage selectable
Delivering up to 180lm/W
Luminaire joins to create a continuous line of light – up to 70m
Multiple lens option available
3 wire, 5 wire, 7 wire and 8 wire options available
Circuit selector incorporated
Daylight and motion sensor options available
Flicker free
2kV surge protection

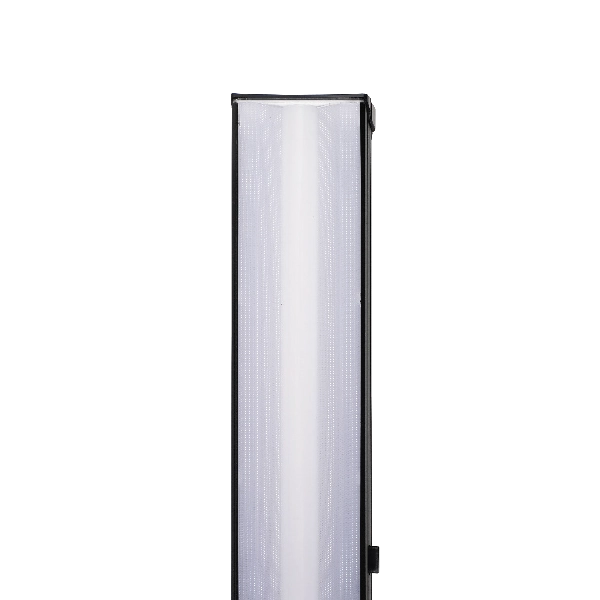

Luxline Lens

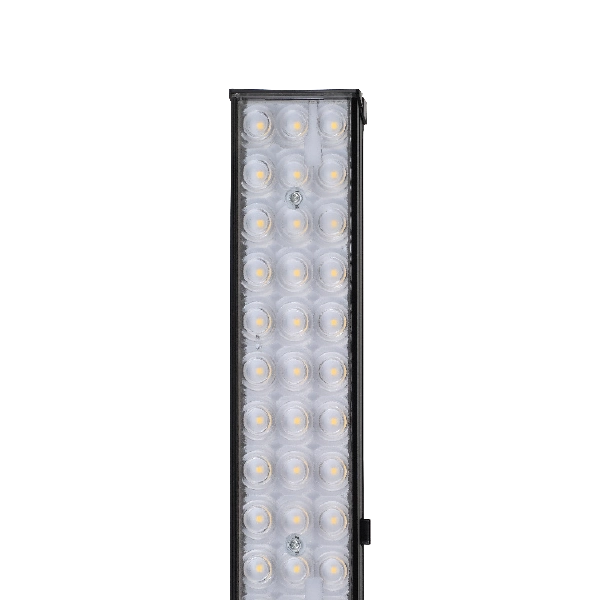

Stellar Lens

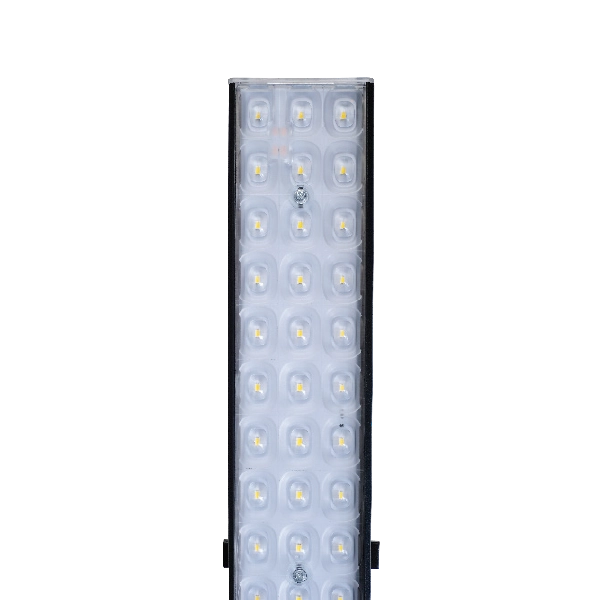

Vortex Lens

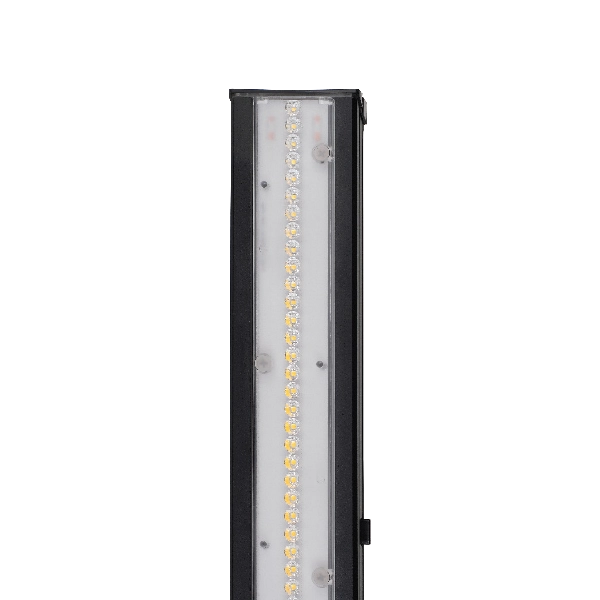

Prism Lens

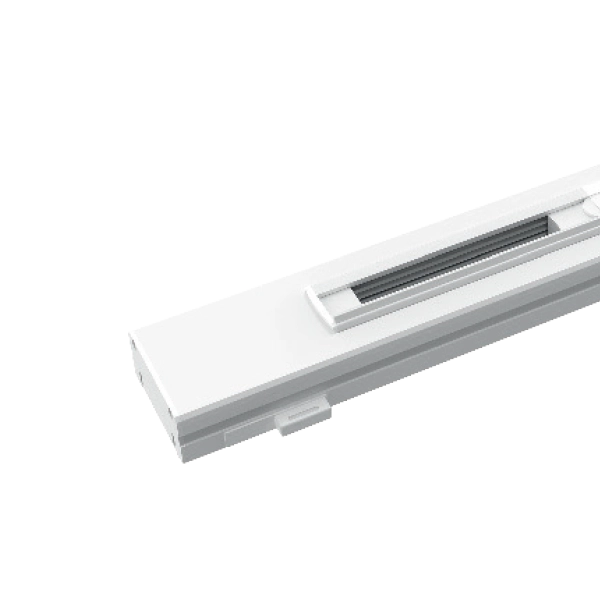

Suspension Kit
Track Light Module 2′, 4′, 5′

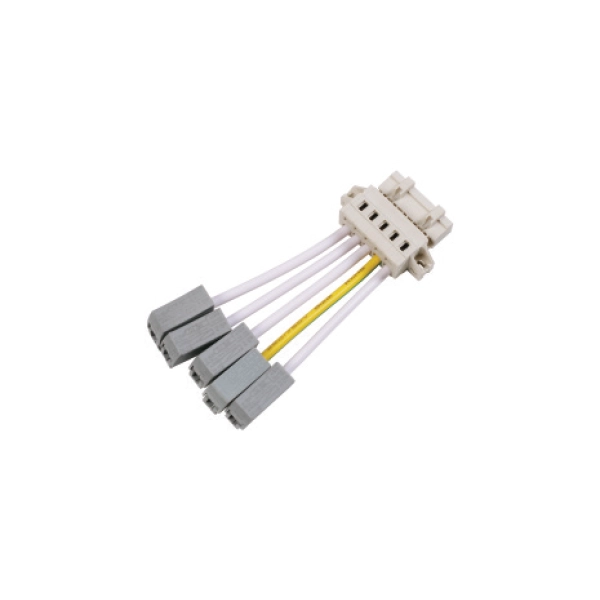

3/5/7 Wire Connector
Endcap

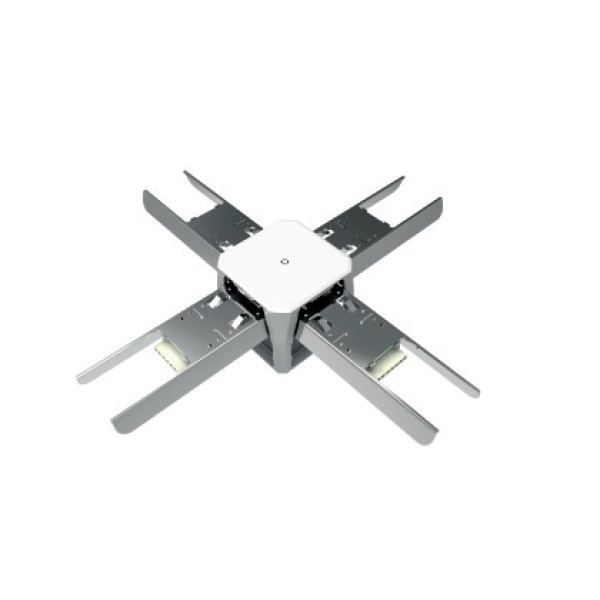

Cross Connector

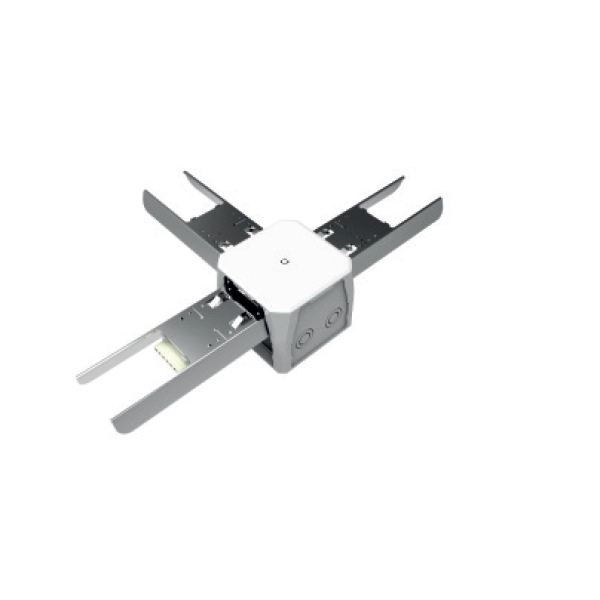

T Connector

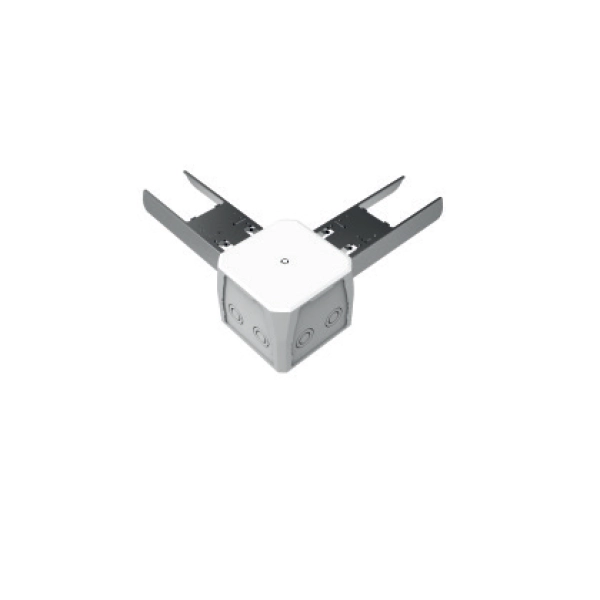

Elbow Connector
| Length | Watts | lm/W | Lumens | Colour | Spec Sheets | IES Files |
|---|---|---|---|---|---|---|
| 2' (600mm) | 16W / 20W / 24W / 30W | up to 180 | up to 5400lm | 3000K / 3500K / 4000K / 5000K |  | |
| 4' (1200mm) | 24W / 30W / 35W / 40W | up to 180 | up to 7200lm | 3000K / 3500K / 4000K / 5000K | | |
| 5' (1500mm) | 36W / 45W / 55W / 60W | up to 180 | up to 10800lm | 3000K / 3500K / 4000K / 5000K | | |
Emergency and Microwave Sensor options available upon request
Contact sales office for information on 1800mm & 2400mm length options
Available in 30°, 60°, 90° 120°, asymetrical and double asymmetrical
